加工中心解决方案

MACHINING CENTER CONTROL SOLUTION

我们为雕铣提供一站式软件、硬件解决方案。











核心控制器源自德国,在加工中心行业有20年以上的使用经验。针对加工中心使用特点,采用订制化的操作界面,支持专业操作面板控制。软件层支持二次开发,可无缝集成行业配套软件。标配EWF数据保护,系统运行更稳定。

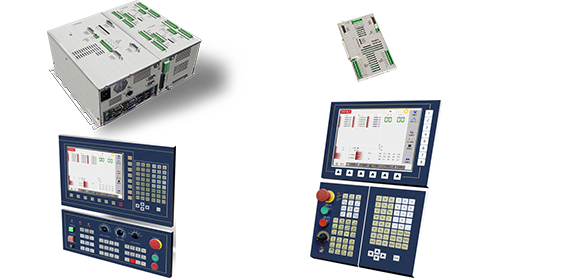

硬件部分

DB-S控制器

■ Intel多核CPU;
■ 标配2G内存;
■ SSD存储器;
■ 标配4轴联动控制;
■ 标配48输入32输出;
■ 标配对刀仪、刀库、主轴变速箱控制;
■ 支持网络传输、U盘传输



4ENC4A扩展模块

■ 扩展4轴控制
■ 支持4路模拟量输入输出
■ 不锈钢外壳屏蔽


操作面板

■ 12寸工业级显示器
■ 进口按键按钮
■ 操作部分IP65级防护



Double CNC-pioneer with more than 20 years of experience in the field of machining center industry; the core controller comes from Germany. In accordance with the characteristics of the machining center industry, we provide the customer with customized operation interface (based on a professional operation panel); the software layer supports further development; EWF data protection which brings a more stable-running system to the customer.



Hardware

DB-S Controller

■ Intel multi-core CPU;
■ Standard: 2G memory;
■ SSD memory;
■ Standard: 4-axis linkage control;
■ Standard: 48 input 32 output;
■ Standard: Control of tool setting gauge, tool magazine and spindle with and without gearbox;
■ Support network and USB transmission



4ENC4A Expanded Module

■ Extension for 4 additional axes
■ Support 4 channels of analog input and output
■ Stainless steel shell shielding


Operation Panel

■ 12-inch industrial display
■ Imported buttons
■ IP 56 level protection for front operation part
