LASER CUTTING CONTROL SOLUTION


核心控制器源自德国,在激光切割行业有20年以上的使用经验。针对激光行业使用特点,采用定制化的操作界面,支持专业操作面板控制,标配龙门轴控制功能。配备EWF数据保护,系统运行更稳定。

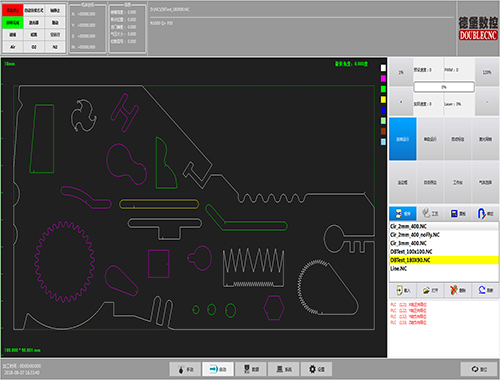

【平面切割】
内嵌了常用的材料切割工艺数据库。软件支持二次开发,可无缝集成行业配套软件。

【管材切割】
最大支持10轴伺服控制,支持双卡盘、三卡盘、全自动上下料控制。支撑轴(托料轴)系统克根据加工管材旋转自动升降。可无缝集成常见的业内切管设计软件,可进行异性管材切割。

【精密切割】
支持全闭环控制,控制分辨率可达0.0001mm (实际精度以光栅反馈精度为准),支持CCD视觉识别,内嵌简易编程绘图软件,克选配我司具有发明专利的精确能量控制模块,实现多层复合材料的分层切割。



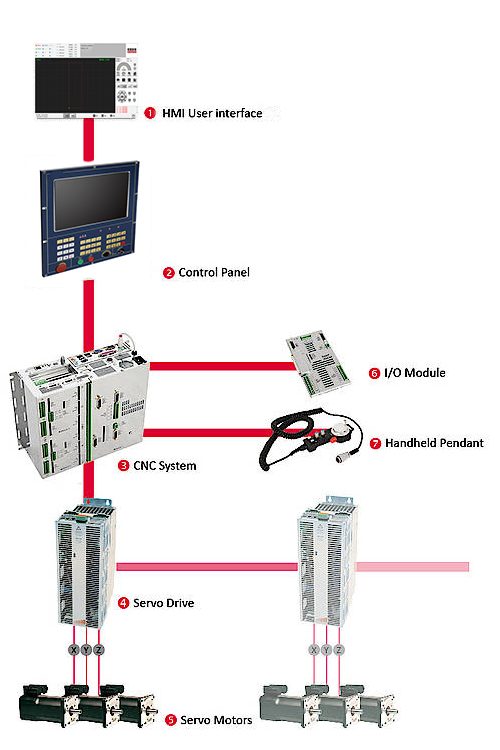

硬件部分:
DB-S控制器:
 ■ Intel多核CPU
 ■ 标配4G内存
 ■ SSD存储器
 ■ 标配4轴联动控制
 ■ 标配48输入32输出
 ■ 标配激光功率控制,PWM控制

 ■ 标配切割辅助气体压力控制及压力检测



2ENC4A扩展模块
■ 拓展两轴控制
■ 支持4路模拟量输入输出
■ 不锈钢外壳屏蔽


操作面板
■ 15寸工业级显示器
■ 进口按键按钮
■ 前操作部分IP65级防护




Double CNC is a CNC pioneer with more than 20 years of experience in the field of laser cutting industry; the core controller comes from Germany. In accordance with the characteristics of the laser industry, we provide the customer with customized funcionality like

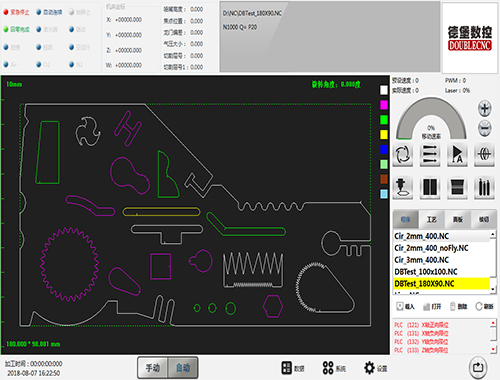

-  Laser operational interface / professional laser operation panel
-  EWF data protection which brings a more stable-running system to the customer
-  Important CNC functions for laser machines like
  ■  standard gantry axis control
  ■  laser power control dependent on actual feed, based on PWM functionality

【PLANE CUTTING】
Embeded with cutting process database for commonly used materials and thicknesses, support further development, able to integrate industry bundled software seamlessly.

【PIPE CUTTING】
Maximum support the servo control of 10-axis;
- support of multiple chucks
- support of fully automatic loading and unloading control
- support axis (feeding axis) which can automatically lift and lower according to the rotation of the processing pipe
- able to integrate common used pipe cutting design software seamlessly
- support the cutting of not regular pipe shapes

PRECISION CUTTING
Support full-closed loop control, control resolution up to 0.0001 mm (the actual accuracy is based on the grating feedback accuracy); support CCD visual recognition, embeded simple programming drawing software, optional with our patented precise energy control module to achieve layered cutting of multilayer composites.


Hardware:
DB-S Controller:
 ■ Intel multi-core CPU
 ■ Standard: 4G memory
 ■ SSD memory
 ■ Standard: 4-axis linkage control
 ■ Standard: 48 input 32 output
 ■ Standard: laser power control,PWM control (more software based)

 ■ Standard: Auxiliary gas pressure control and pressure detection



2ENC4A Expanded Module
■ Extension for two additional axes
■ Support 4 channels of analog input and output
■ Stainless steel shell shielding


Operation panel
■ 15-inch industrial display
■ imported buttons

■ IP56 level protection for front operation part
